A bench seating system of extraordinary versatility.

Its architectonic design and its technical perfection turn this series into a bench seating system of extraordinary versatility. The design is founded on the principle of territoriality, defining each seat separately through gently curved seat shells.

A highly successful series in the market segments Airport and Public Seating, with thousands of seat units installed worldwide.

Terminal Variations

No items found.
2-Seater, Metal Shell

A series made of pure metal. A hard-wearing and heavy-duty bench, ideally suited for highly-frequented contract environments. The anatomically designed perforated steel seat shells ensure an ergonomic comfort.

Optional internal and external armrests.

Width: 1280 mm

Height: 820 mm

2-Seater, PU Shell

These seat shells, made of polyurethane (PU) with its slightly grained surface, offer an excellent comfort level, are pleasant to touch, and at the same time heavy-duty and low maintenance.

Optional internal and external armrests.

Width: 1290 mm

Height: 850 mm

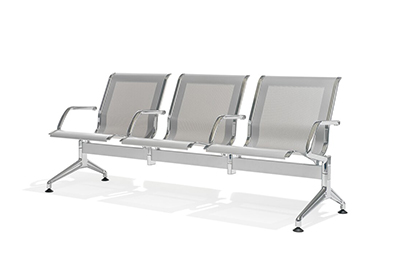

3-Seater, Metal Shell

A series made of pure metal. A hard-wearing and heavy-duty bench, ideally suited for highly-frequented contract environments. The anatomically designed perforated steel seat shells ensure an ergonomic comfort.

Optional internal and external armrests.

Width: 1880 mm

Height: 820 mm

3-Seater, PU Shell

These seat shells, made of polyurethane (PU) with its slightly grained surface, offer an excellent comfort level, are pleasant to touch, and at the same time heavy-duty and low maintenance.

Optional internal and external armrests.

Width: 1880 mm

Height: 850 mm

4-Seater, Metal Shell

A series made of pure metal. A hard-wearing and heavy-duty bench, ideally suited for highly-frequented contract environments. The anatomically designed perforated steel seat shells ensure an ergonomic comfort.

Optional internal and external armrests.

Width: 2480 mm

Height: 820 mm

4-Seater, PU Shell

These seat shells, made of polyurethane (PU) with its slightly grained surface, offer an excellent comfort level, are pleasant to touch, and at the same time heavy-duty and low maintenance.

Optional internal and external armrests.

Width: 2470 mm

Height: 850 mm

No items found.
No items found.
No items found.
No items found.
No items found.

Terminal Accessories

Wall Spacer Fixings
Plastic Glides or Floor Fixation
PRM Seating

Terminal Inspiration

See the Terminal in actions across the globe.

Product Information

Construction and Materials

Modular construction

Beam construction for 1 up to 4 seats.

Frame
  • Stable beam made of square tubular steel
  • Aluminium die-cast pedestals with glides
  • Aluminium die-cast external and internal armrests
Seat Shell
  • Ergonomically shaped, perforated steel seat shell, waterfall front seat edge (benches with metal shells)
  • Steel side strips with rounded edges, powder coated or chromed (benches with metal shells
  • Ergonomically shaped seat shell. PU foam as self-supporting construction with inside steel frame (benches with PU shells
  • Seat shell screwed to the beam through steel supports
Cleaning, retrofitting, replacement
  • PU surface is stain-resistant, easy to clean and to disinfect for optimum hygiene
  • PRM seats and armrests can be easily retrofitted

Materials

Seat Shell
  • Seat shell perforated steel powder coated (benches with metal shells)
  • Seat shell PU foam, grained PU surface, black (benches with PU shells
Frame
  • Beam / side rails powder coated or bright chrome side rails (if legs / armrests polished aluminium)
  • Aluminium legs / armrests powder coated or polished aluminium
PU
black

Dimensions

Benches, metal shells

Weights
  • 1 seat shell: approx. 10 kg
  • 1 supporting pedestal: 4 kg
  • 1 arm: 1.5 kg
  • Beam: 4.5 kg / m
Armrest
  • The length of the bench is not extended when adding external armrests
  • Per internal armrest plus 5 cm
Center to center
  • Without internal armrest 59 cm
  • With internal armrest 64 cm
Dimensions of the benches
  • Length of the beam
    • 1 seater bench: 67 cm
    • 2 seater bench: 125 cm
    • 3 seater bench: 185 cm
    • 4 seater bench: 245 cm
    • The glides stick out by 1.5 cm;
      add 2 x 1.5 cm to get overall dimensions
  • Benches cannot be stacked

Benches, PU shells

Weights
  • 1 seat shell: approx. 9.7 kg
  • 1 supporting pedestal: 4 kg
  • 1 arm: 1.5 kg
  • Beam: 4.5 kg / m
Armrest
  • The length of the bench is not extended when adding external armrests
  • The length of the bench is not extended when adding internal armrests
Center to center
  • Without internal armrest 59 cm
  • With internal armrest 59 cm
Dimensions of the benches
  • Length of the beam
    • 1 seater bench: 68 cm
    • 2 seater bench: 126 cm
    • 3 seater bench: 185 cm
    • 4 seater bench: 244 cm
    • The glides stick out by 1.5 cm;
      add 2 x 1.5 cm to get overall dimensions
  • Benches cannot be stacked

PRM Seating

  • Raised seat: seat height 49 cm
  • Raised arm height by 5 cm on request (only for models 7100/5, 7130/5)
